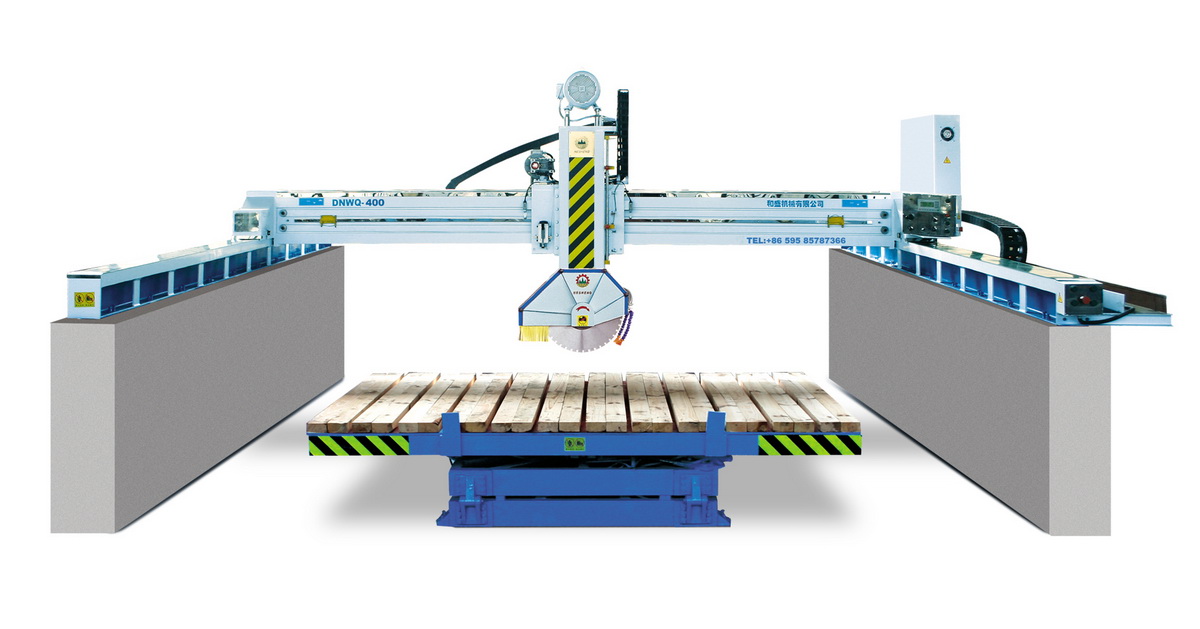

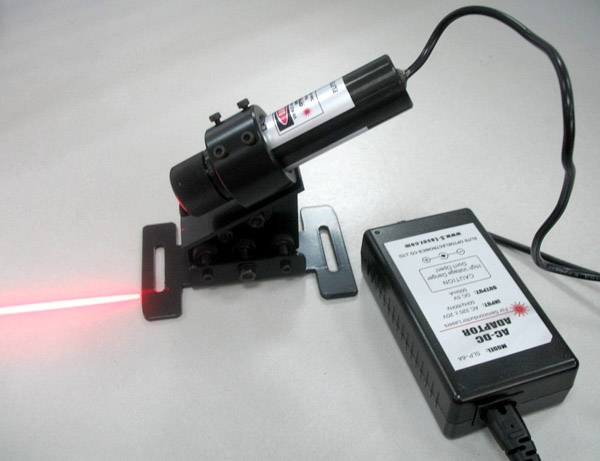

| DNWQ-400 Bridge saw (Infrared bridge cutting machine) |
- Product material
- Feature
- Local display

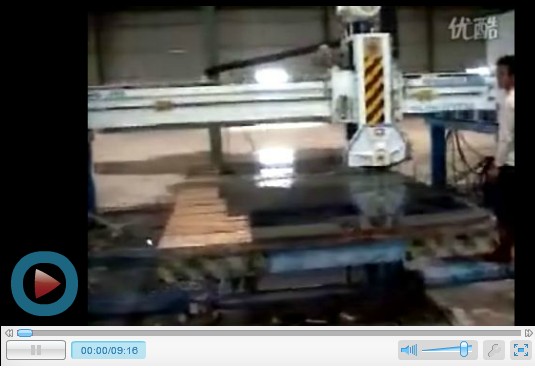

- Video downloads
- Other materials
| Model |
DNWQ-400 |
DNWQ-600 |
| Max. diameter of blade |
φ400mm |
φ600mm |
| Workbench dimension(L×W) |
3200×2000 mm |
3200×2000mm |
| Workbench turnover degree |
90°n° |
(45°,90°) n° |
| Head tilting degree |
------ |
--------- |
| Power of main motor |
15kw |
15kw |
| Overall dimension (L×W×H) |
5800×4500×2800mm |
6200×5000×3000mm |
| Model |
DNWQ-400A |
DNWQ-600A |
| Max. diameter of blade |
φ400mm |
φ600mm |
| Workbench dimension(L×W) |
3200×2000 mm |
3200×2000mm |
| Workbench turnover degree |
90°n° |
(45°,90°) n° |
| Head tilting degree |
45°n° |
45°n° |
| Power of main motor |
15kw |
15kw |
| Overall dimension (L×W×H) |
5800×4500×3100mm |
6200×5000×3300mm | |
Machine suited to all workshops for production of worked marble and granite.
·Main frame and bench in highly resistant cast iron to guarantee stability and reduced vibration.
·Motor of reduced dimensions connected directly to disc.
·Operating head vertical movement obtained by auto-braking motor controlled by encoder on pris-matic guide coupling.

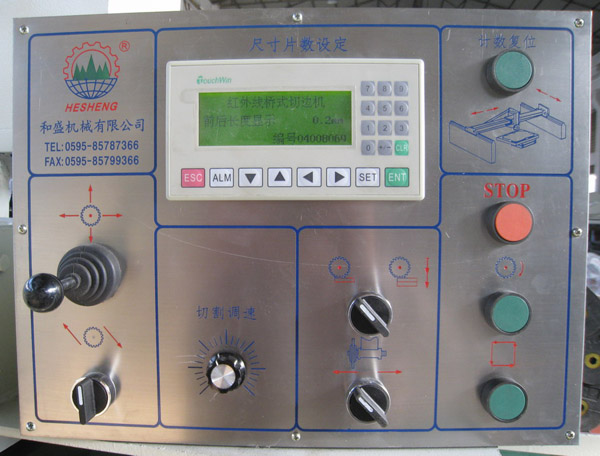

·LCD graphics monitor to view English programme data.
·Right/left movement, translation of bridge, up/down movement of head and required bench rotat-ion automatic & manually controlled. Separate ampermometer for regulating right/left sliding speed.

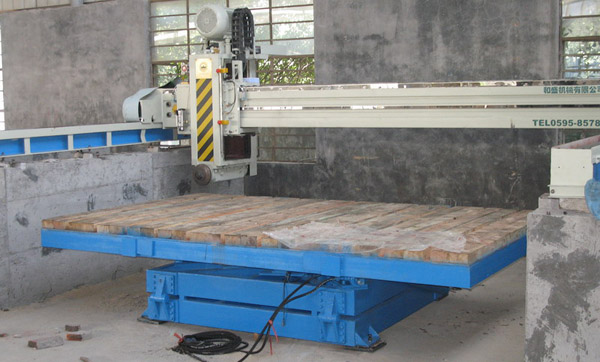

·Worktable tilt up by 85°for loading and unloading slabs.
·Hydraulically tilting head from 45°for marble/granite cutting.(optional)
·Automatic and programmable rotating can be blocked in every positions between 0°-360°or.(optional).

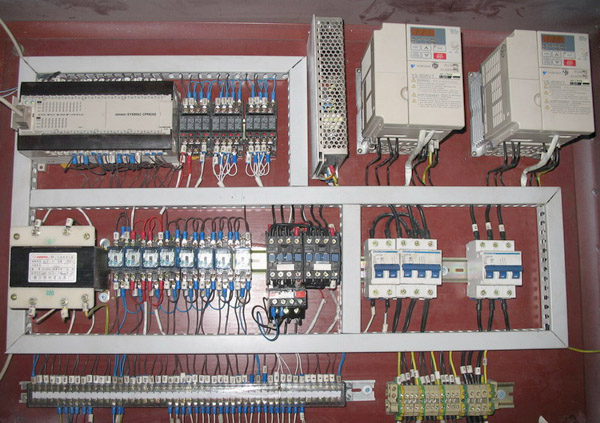

·Electronically controlled inverter for all required speeds (optional).
Hydraulically tilting head
|

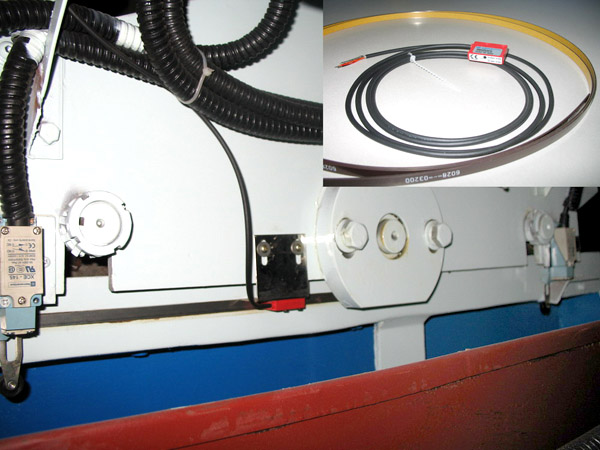

Positioning size accuracy adopt magnescale (made in Germany):the position accuracy will not effected by the long year machine using.
|
|
